get obd2 diagnostic tools - diyobd2.frMPPS V18 software read Audi A3 Bosch ME7.1 K-Line successfully
It’s verified that MPPS V18 eu clone can work on Audi A3 ecu Bosch ME7.1 without any issue.
MPPS V18 device in the test:
Diyobd2 engineers tested MPPS hardware v1.08.21.

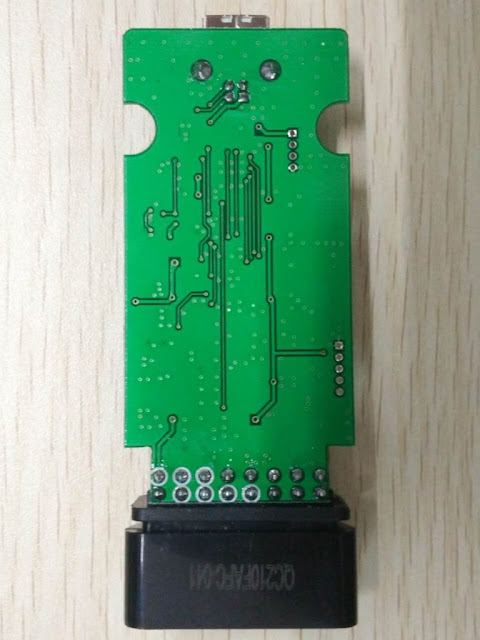

Only this version with PCB design below can work with mpps v18 software.
Source: http://www.diyobd2.fr/wholesale/mpps-v18-main-tricore-multiboot-avec-breakout-tricore-cable.html
MPPS v18 software:
It’s version 18.12.3.8
Test model:
Audi A3 1.8L
The engineers test the MPPS V18 on Audi A3 for ECU id reading.
1) Plug MPPS V18 clone to the OBD port under the dashboard on the Audi A3 car and connect the other end of it to a laptop running MPPS V18 software.
2) Start the laptop, the car and then the MPPS V18 application software.
3) Select the language to use on the upper right corner. Here it’s English. It’s a multilingual version, covers more than ten languages.
4) Select the car make and car model. Here I select Audi and then A3.
5) Select the cars ECU type: “1.8L Bosch ME7.1 K-Line”.
6) Hit “ECU ID (F1)” at the bottom right on the MPPS interface.
MPPS V18 reading AUDI A3 Bosch ME7.1 K-Line success!
How does Honda HDS HIM perform forced regeneration of DPF?
This blog is a tutorial for you to perform forced regeneration of DPF using HondaHDS HIM diagnostic tool. Let’s go straight to the point!
First question: Replace DPF or regenerate DPF filter?
The correct decision must take into account the vehicle’s intended use and driving style. If the vehicle is to be used for short, stop-start journeys, with few frequent, then removal is recommended. If the vehicle will be driven hard, with high frequency long journeys, then it’s better to regenerate DPF to save cost.
Second question: How to use Honda HDS HIM perform forced regeneration of DPF?
(This guide demonstrates Honda Civic 8 as an example.)
Tool you need:
1. Honda HDS HIM
Before starting you should make sure:
- You need a PC laptop with stable power charge and avoid power cut during the operation.
- The process takes about 30min. So either you stay in the car while time is still on or off with the PC: not to go back in the car during the regeneration, avoids interactions with it to avoid problems.
- If you use an adapter Com (232) -> USB, verify that the com port is set to COM1. The interface does not work on another COM port!
- Check the oil level before and after regeneration. If after regeneration, the oil level is too high or if it stinks diesel will require draining.
- Disable the energy saving USB, antivirus, internet and all that can use PC resources.
Steps to regenerate DPF filter:
1) To start regeneration, you should first make the car exhaust get to a hot enough temperature, ideally around 600 degrees Celsius. Open the hood and disable all pump energy (ceiling, etc ...) and especially not fun to reactivate during operation.
2) Connect the Honda HDS scanner with car and laptop. Start Honda HDS software then turn car ignition on to position II.
3) Press the "Select a new vehicle" and enter the mileage.
Select "System" then "Diesel"
4) Check and delete the DTC, menu "DTC - given frozen". It’s necessary to remove DTC codes before operation and also check the various sensors of the DPF.
After that go back to "Settings" and select "DPF Regeneration"
5) Put the engine keep running. Turn on the lights and the air conditioner. (If the engine is not the right temp, HDS will ask to accelerate between 1600 and 2400trs/min. When the temp is reached, HDS takes over, release the accelerator.)
6) Allow HDS to regeneration. The engine mounts alone at 3000trs/min during regeneration. It is stagnant at 1500 trs/min. At the end of the regeneration scheme dates back to 3000 trs/min to cool the exhaust line (weird, but it is like here)
7) When the regeneration is complete, quit HDS, turn off engine, remove the cables from HIM and go for a ride to make sure the cooling line. In this way you can use Honda HDS HIM diagnostic tool to regenerate DPF to save lots of money!
OBDSTAR VAG PRO Audi License Error Suggestion & Solution
Here are some tips for OBDSTAR VAG PRO”license error” when change mileages, reset service and steer on Audi.
2007 gti, 2008 seat leon, 2008 audi a4， 2012 audi q5 fails to do steering reset, mileage correction, service reset. And the device displays “license error” then the dashboard is freezed.
Solutions and suggestion from obdstar customer service:
Try to update VAG PRO Audi to the latest version via the official website: www.obdstar.com.
OBDSTAR scanner update tips
Then the issue should be solved.
Here are all testable Audi models for vag pro.
Vag pro for IMMO on Audi v31.13:
Read security code
17 Dashboard
Auto
A4 RB8 2006-2007
Manual
25 Immobiliser
Auto
Manual
01 Engine
Auto
Manual
Program keys
17 Dashboard
25 Immobiliser
Program remote
35 Central lock(KWP1281)
46 Central comfort module(KWP1281)
Vag pro for Audi Odometer Mileage v30.72: Audi
A3
2003-2006
2007-
A4
RB4 2002-2005
RB8 2006-2007
A4L
2008-2012
2013-
A5
2008-2012
2013-
A6
1998-2004
A6L
2004-2008
2009-
A8L
2003-2006
Q5
2008-2012
2013-
Q7
2006-2008
2009-
R8
R8 2007-
S5
2008-2012
2013-
S8
2007-
TT
TT 2007-
Obdstar vag pro for audi RESETSRS: Audi
4B0959655G
Erase collision record
Erase the ECU internal fault
4B0959655R
Erase collision record
Erase the ECU internal fault
Vag pro obdstar for audi STEERRESET V30.01: Audi
Break electronic system
Steering wheel electronic system
Steering electronic system
OBDSTAR VAG PRO Audi License Error Suggestion & Solution
Here are some tips for OBDSTAR VAG PRO”license error” when change mileages, reset service and steer on Audi.
2007 gti, 2008 seat leon, 2008 audi a4， 2012 audi q5 fails to do steering reset, mileage correction, service reset. And the device displays “license error” then the dashboard is freezed.
Solutions and suggestion from obdstar customer service:
Try to update VAG PRO Audi to the latest version via the official website: www.obdstar.com.
OBDSTAR scanner update tips
Then the issue should be solved.
Here are all testable Audi models for vag pro.
Vag pro for IMMO on Audi v31.13:
Read security code
17 Dashboard
Auto
A4 RB8 2006-2007
Manual
25 Immobiliser
Auto
Manual
01 Engine
Auto
Manual
Program keys
17 Dashboard
25 Immobiliser
Program remote
35 Central lock(KWP1281)
46 Central comfort module(KWP1281)
Vag pro for Audi Odometer Mileage v30.72: Audi
A3
2003-2006
2007-
A4
RB4 2002-2005
RB8 2006-2007
A4L
2008-2012
2013-
A5
2008-2012
2013-
A6
1998-2004
A6L
2004-2008
2009-
A8L
2003-2006
Q5
2008-2012
2013-
Q7
2006-2008
2009-
R8
R8 2007-
S5
2008-2012
2013-
S8
2007-
TT
TT 2007-
Obdstar vag pro for audi RESETSRS: Audi
4B0959655G
Erase collision record
Erase the ECU internal fault
4B0959655R
Erase collision record
Erase the ECU internal fault
Vag pro obdstar for audi STEERRESET V30.01: Audi
Break electronic system
Steering wheel electronic system
Steering electronic system
Which clone ECU programmer can read good EDC17?
Ktag, kess v2, FgTech galletto v54, MPPS V16...are all good at Bosch EDC17? Tips are here for good ECU programmers (esp. Ktag and kess) to read EDC17.
Kess v2 will programunprotectedBosch EDC17's via OBD.
If the EDC17 ECU is protected, then Ktag can be used to program in boot mode.
Some ECU's can beunlocked, in boot mode with Ktag and then programmed with Kess.
kess v2 obd reads are often partial,
Ktag reads are normally full reads.
If you want to program EDC17's then I would suggest buying Kess v2 and Ktag, together they are great tools.
KESS V2 + EDC17
KTAG + EDC17
