Which OPCOM firmware can read security codes for key programming?

Hunta says:

“opcom 1.39 has always worked for me reading security codes and for key programming”

x-paul-x06 says:

“opcom will read his security code but it should as i managed to down grade the firmware to 1.39”

Marks152 says:

“opcom v1.39 is the ONLY firmware you should be running when using 100219a. It is designed to run with this software and is the ONLY version that will allow FULL use of the interface. Any firmware higher will restrict access to the instruments.”

Ssmith73 says:

“1.39 firmware can get a spare key fob programmed”

....

So, only opcom firmware v1.39 can read pin and program keys together.

where can get working OPCOM for key programming?

Here, http://www.diyobd2.fr/ offers two options:

2009 OPCOM firmware v1.39:

http://www.diyobd2.fr/wholesale/opcom-op-com-2009-v-can-obd2-opel-148.html

Opcom v1.39 can read security codes and program keys in one device, as what users say above. But, unluckily, it stops production.

2012 OP-COM firmware v1.59:

http://www.diyobd2.fr/wholesale/opcom-op-com-2010-v-can-obdii-opel-free-shipping-1366.html

2012 Opcom v1.59 can program keys also, but you need use Carprog v8.21 or CarProg 9.31 to read pin /security codes from engine ECU.

How to use opcom for key programming?

Opcom: Year -> vehicle -> body -> Cim -> Programming -> immo-programming -> security-code -> add new key

Immo

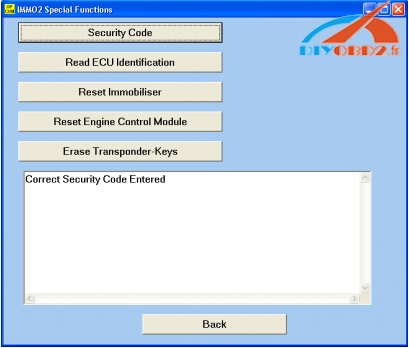

Security code

Program key

Ceci est du support technique du site Web op com en francais:Which OPCOM firmware can read security codes for key programming?

OBDSTAR F108 key programmer support 2001 Peugeot 307?

Last weekend, borrowed OBDSTAR F108 car key tool from my friend, and today used it to add new keys for my Peugeot 307 2001. But communication breakdown...

So this F108 failed to read security codes for 307 Peugeot 2001. It only support Peugeot after the 2008 year.

But maybe you can try program keys using Lexia 3 PP2000 (Notice diyobd2.fr lexia 3-pp2000 software don't support program keys)

note: sources above from a owner with Peugeot 307; PP2000 at diyobd2.fr never tested this function

2001 Peugeot is kind of of old. Maybe The Key Pro M8 can be tried. the model is listed

This is from OBD2 Francais website technical support:OBDSTAR F108 key programmer support 2001 Peugeot 307?

How to rework Kess V2 hardware as the genuine

China Kess v2 also yes can be reworked like Ktag to work completely as the genuine. Here is the free solution of Kess V2 PCB rework.

TRY ON YOUR OWN RISK!

Kess v2 PCB:



Kess v2 rework:

Photo is of original board so check all others components to be as per this one.

If photo is not clear enough ...

Transistors to use :

BCR112

MMUN2113

BC817

Murata filters:

NFE61PT472C1H9L (connect ground for all of them)

Capacitors:

1uF - 35V

220uF - 10V

10uF - 16V tantalum

Fill up all holes from side to side

Use photo as reference if others components are different

Then the clone KESS V2 will also work like a charm

(Guide& picture) How Key Pro M8 make Hyundai Santa Fe Key?

The Key Pro M8 as a powerful diagnostic tool locksmith supports you to add & make new keys for full range of worldwide car models. Following guide is for Key Pro M8 Hyundai Santa Fe Key make. Hope it helps.

First, you need a Key Pro M8 auto key programmer . Key Pro M8 with newest software Standard version V11.13, Beta version V11.17 is available at

http://www.diyobd2.fr/wholesale/key-pro-m8-auto-key-programmer.html

If you already owned this device, please go straight following steps:

Step1. Start Key Pro M8, click "Standard Software" then input password to unlock it. There is coming a warning message and next a tip for remaining tokens, all press "Enter" button.

Step2. Vehicle Selection Menu: Choose "Hyundai" → "Euro" → "Proximity" → "Vehicle" → "Santa Fe". After that screen will show an image of the security calculator, click "√" at right bottom corner.

Step3. Key Pro M8 will show you code, input it into calculator, and you will get result, input the result code into Key Pro M8, then click "√".

Step4. The screen will show "Hazards on / ignition off", follow this tip to turn off ignition. Now just wait a minute Key Pro M8 is trying to communicate.

Step5. ECU Identification Menu: press "Enter" button, choose "Special Functions" → "Program Prox. Key ". It will show you "One token will be used", click "√". "All keys will be cleared, continue", click "√" to continue.

Step6. Key Pro M8 will show "Insert prox. key into slot ", then do as follow picture (The slot is beside driver's seat), press" Enter "button. Enter security code.

Step7. The screen will show "NO OF PROX. KEYS REQD, MAX PROX.KEYS = 2 ", click 2, click" √ ". Wait a minute.

Step8. The screen shows "Remove prox. key ", plug out the key from slot, press" Enter "button. It shows "Insert next prox. key into slot ", plug in another key, press" Enter "button.

Step9. Wait and you will see tokens are reduced. That means you Succeed in making new key for Hyundai Santa Fe. Plug out the key, things done.

This is from OBD2 Francais technical support website: (Guide & picture) Hyundai Santa Fe How Key Key Pro M8 make?

New Genius Master V5.05 or Kess V2 master V4.036?

With the newly released Genius Master V5.05 touch map, some people asked what it differs from Kess V2 master V4.036

Here is a comparison table made by www.diyobd2.fr engineer.

ECU programmer	New Genius K-Touch Map	Kess V2 V4.036(SE87-C)	Kess V2 V4.036(SE87-D)
Multiplexer
Language	English, Italian, German, French, Spanish, Portuguese, Hungarian	English, German, Spanish, Italian, Portuguese, French	English, German, Spanish, Italian, Portuguese, French
Software	7.06.506 Build 3029	V2.15	V2.15
Hardware	V5.05	V4.036	V4.036
Tokens	No Tokens Limitation,30 Tokens come with device by default, you can press the tokens reset button on the back of hardware to get new Tokens	No Tokens Limitation,CD comes with token programmer, you can follow our video to program tokens. No need remove chips or desolder chips	No Tokens Limitation, there is renew button on the main unit. This button is used to charge tokens. Once your tokens run over, just click this button, then tokens will go back to 30 tokens.
Update	via hardware	via hardware	via hardware
Support Protocols	CAN-BUS, KWP and J1850 protocols	Line, CAN, EDC17 and MED17 and Ford J1850	Line, CAN, EDC17 and MED17 and Ford J1850
Support Vehicle	Car, Bikes, LCV Support more new vehicle than Kess V2 New Genius ECU List	Car and Bike	Car and Bike
PC	Hand-held ECU Chip Tuning Tool, no PC need; software is inside the machine already directly to use	PC-based ECU Programmer, you need install the software by yourself	PC-based ECU Programmer, you need install the software by yourself
Function and method	Read and Write ECU via OBD2 directly
Price	€426 +shipping	€ 133 free shipping	€ 225 +shipping

This is from OBD2 Francais website technical support:New Genius Master V5.05 or Kess V2 master V4.036?
